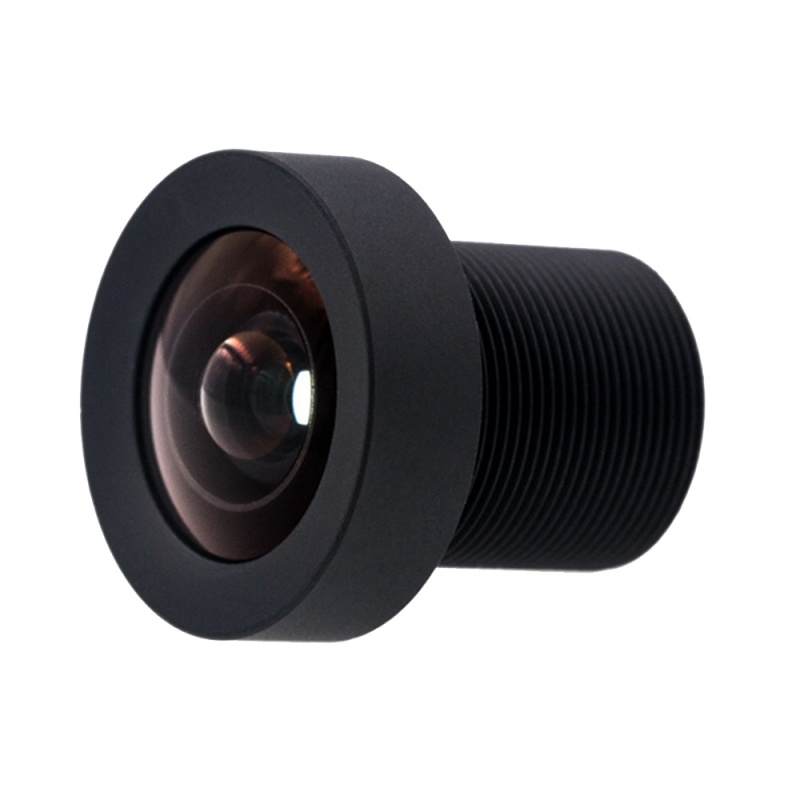

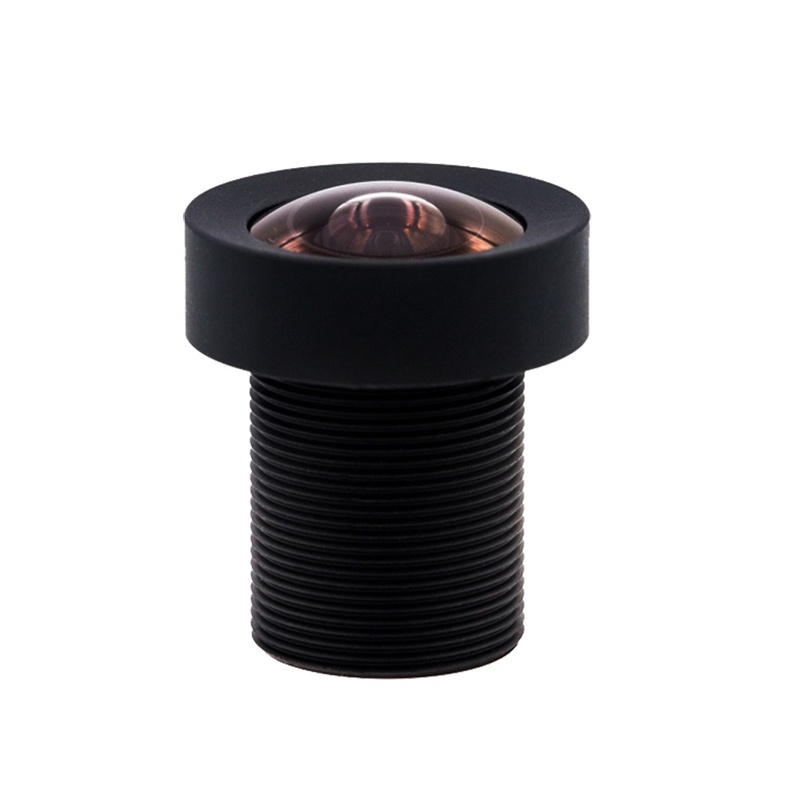

4.5mm 1/2.3” 12MP S Mount Lens Unmanned Aerial Platform Camera

This lens with 1/2.3” sensor is prefect for Drones SJCAM DJI Phantom


Model  lyx4.5
Image size  1/2.3inch Φ8mm
Focal length  4.5mm±5%
Aperture  2.8mm±5%
Field of View D: 100°H: 78°V:59°
Distortion  〈-28%
Total Optical Length  25.4 mm±0.2
Back Focal Length  7.90mm
Flange Back Length  6.86mm
Thread Size  M12*P0.5
Optical Structure  5G2MG+IR
IR Cut Coating   Tave<=95% @420nm-620nm, Tave=50%@650nm±10nm
Barrel Material  Aluminium Alloy
