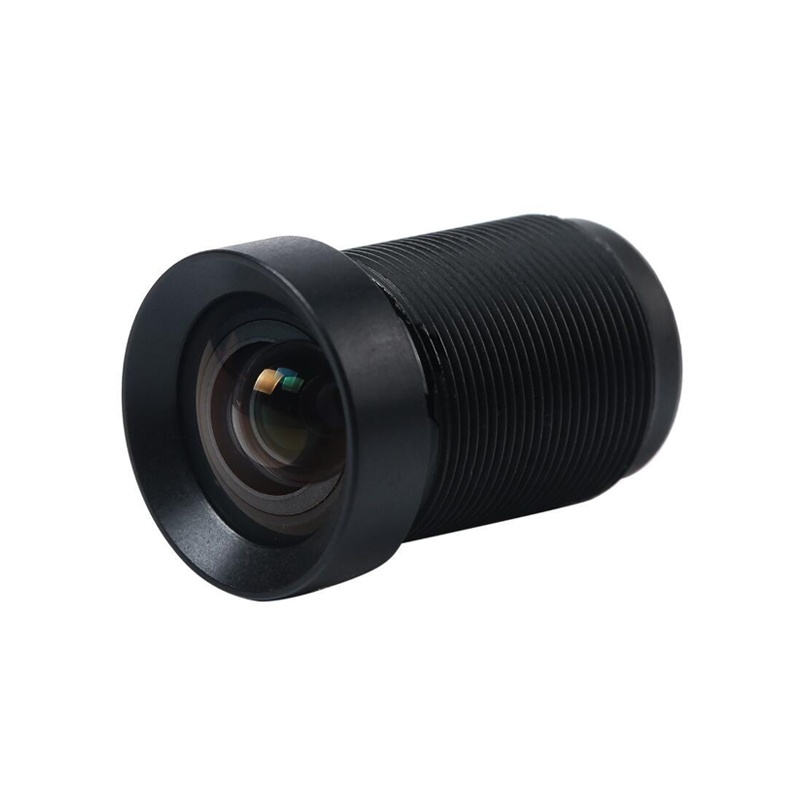

4.35mm Red NDVI Agriculture Lens Mapping M12 For DJI Phantom

NDVI (Normalized difference vegetation index) is the most common vegetation index, and is used to detect live, green, or photosynthetic capacity of plant canopies in multispectral remote sensing data. It is one of the most successful indices to quickly identify vegetated areas and their condition. This index can be used to analyze crops in all growth stages.


Model  LYX4.35-red
Aperture  f/2.8
Focal Length  4.35mm
Optical Back Focal  8.13 ± 0.1
Flange back Focal Length  7.68 ± 0.1
Image Circle  Φ7.9 ( 1/2.3″ )  Max Φ9 ( 1/1.8″ )
Lens Structure  13 Elements, All Glasses
Mount  M12*0.5
Barrel Material  All Metal
FOV  1/2.3″ (D*H*V): 86°*72°*56°
Distortion -0.85%
CRA  〈12.5°
Resolution   more than 300 line pairs/mm
Operating Temperature  -20°C ~ +85°C
Installed Filter  RED NDVI
HSF & Safety  RoHS
